Preparations Before Installation

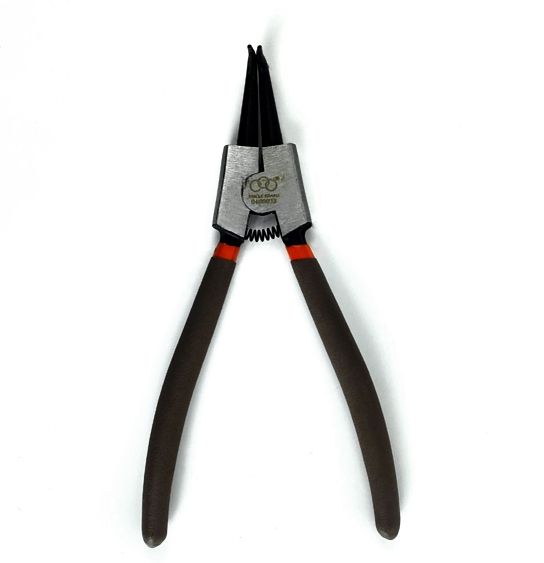

- Tools required: circlip pliers (snap ring pliers)

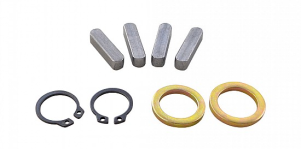

- Check parts: Verify the quantity and type of all components. Ensure every part is present and undamaged.
- Circlip (retaining ring)
- Flat washers
- Key
- Output shaft
- Worm gearbox housing
Installation Steps
- Install the key onto the shaft. Note: Install the key into the shaft keyway that aligns with the gearbox output bore first.

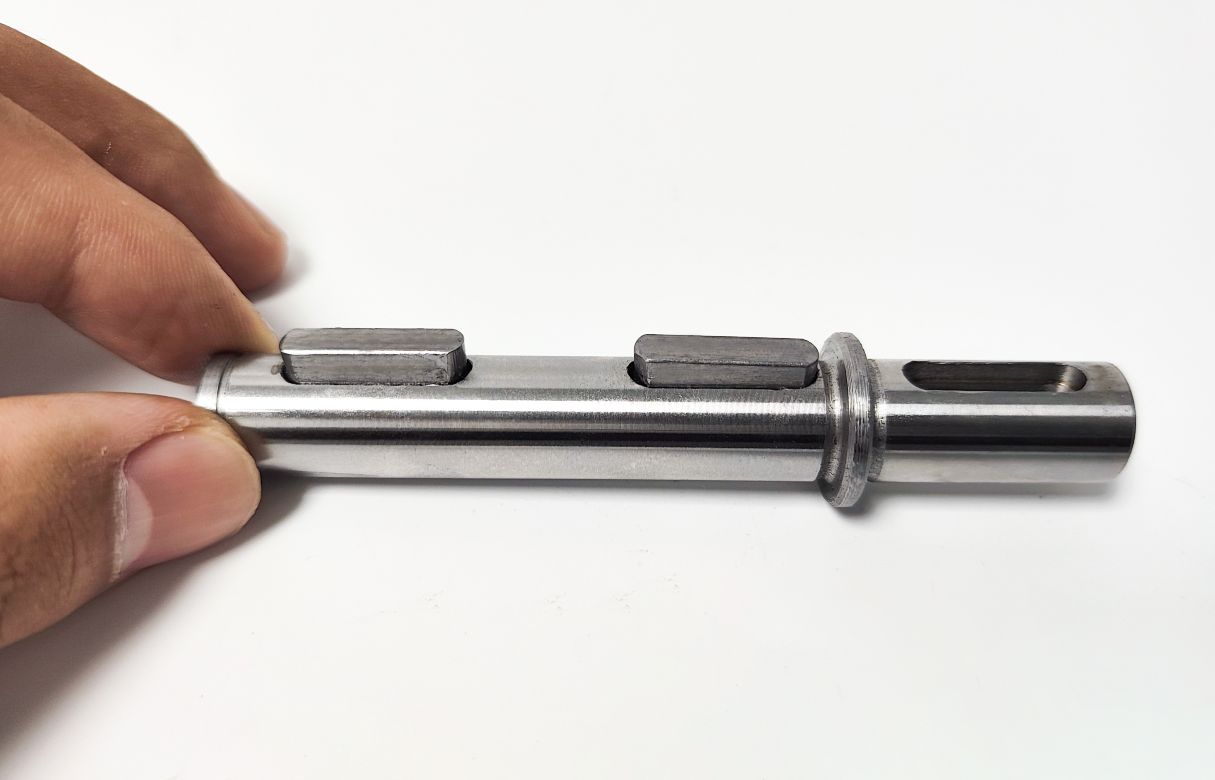

AS Shaft (single-ended output shaft)

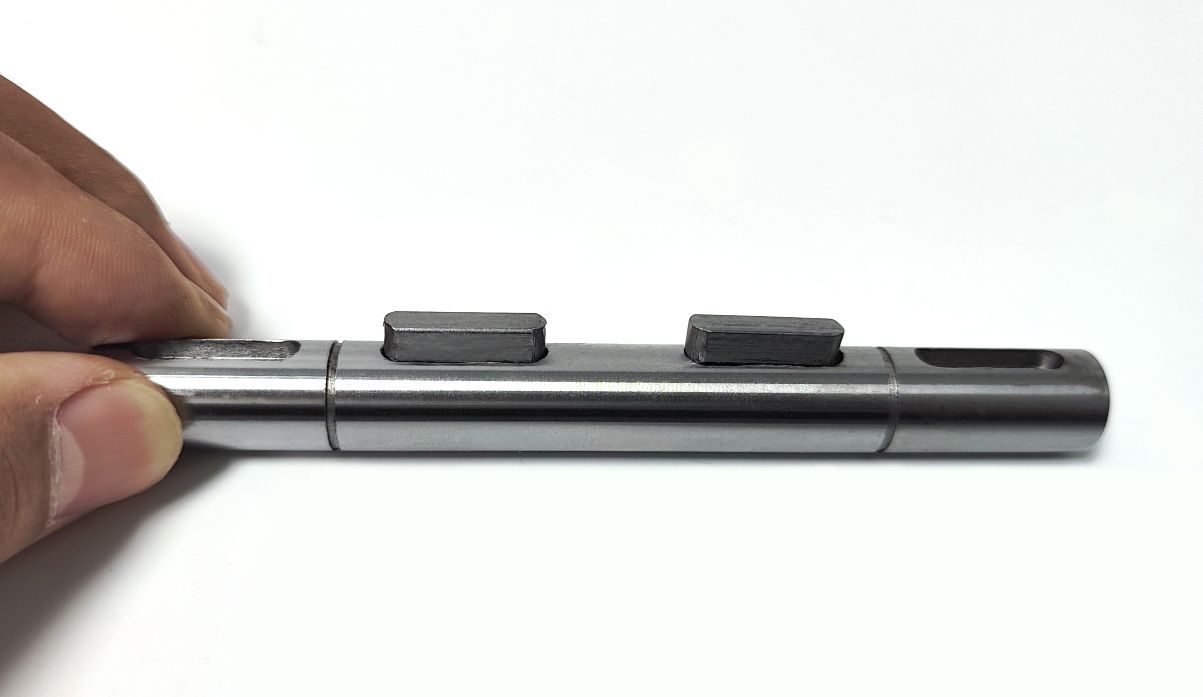

AB Shaft (double-ended output shaft)

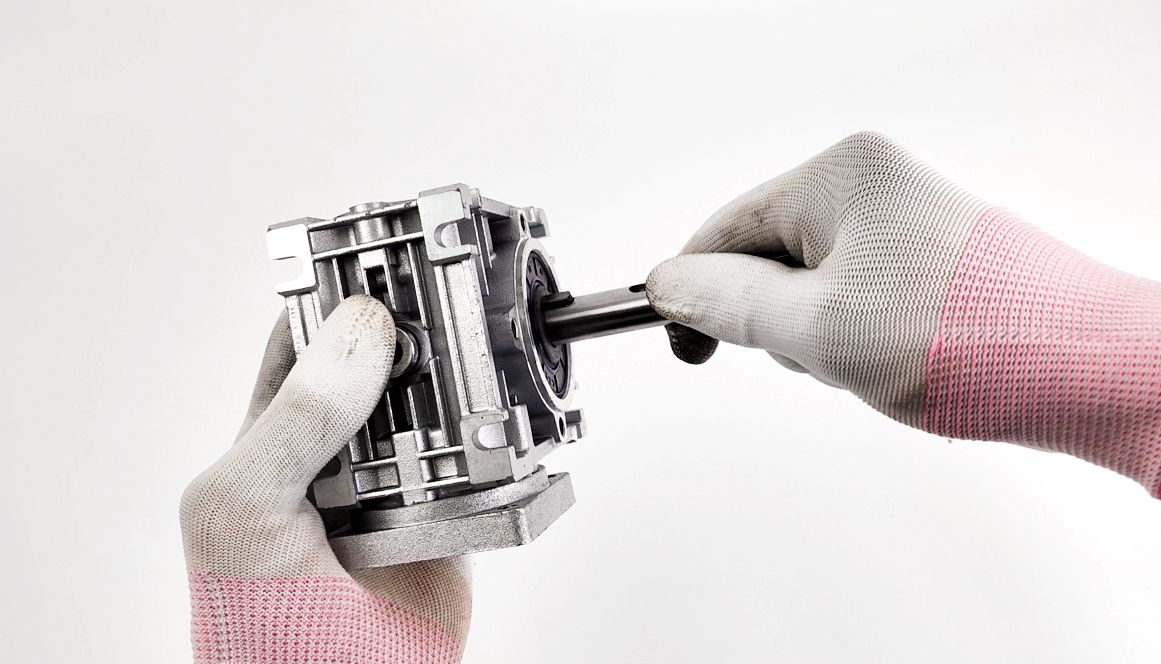

- Insert the shaft into the output bore of the gearbox.

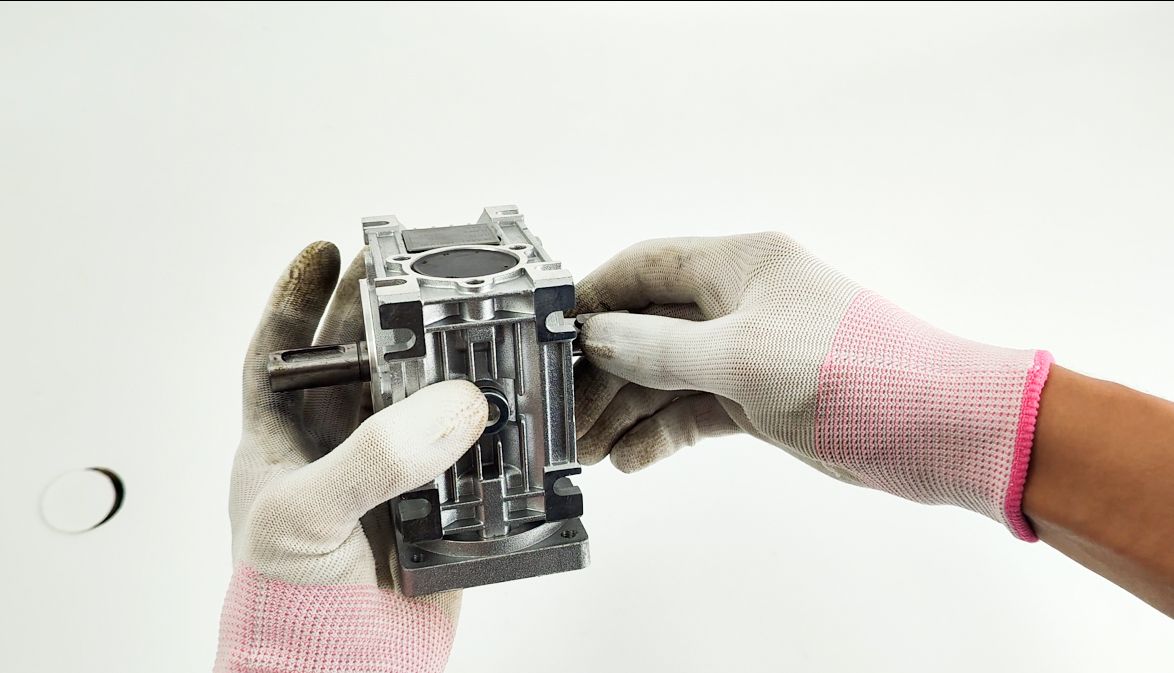

- Install the flat washer.

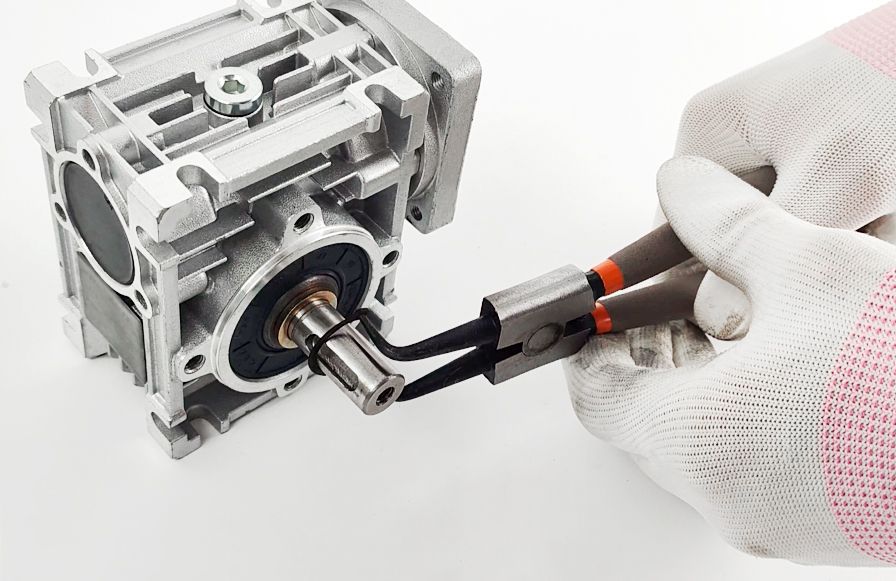

- Install the circlip.

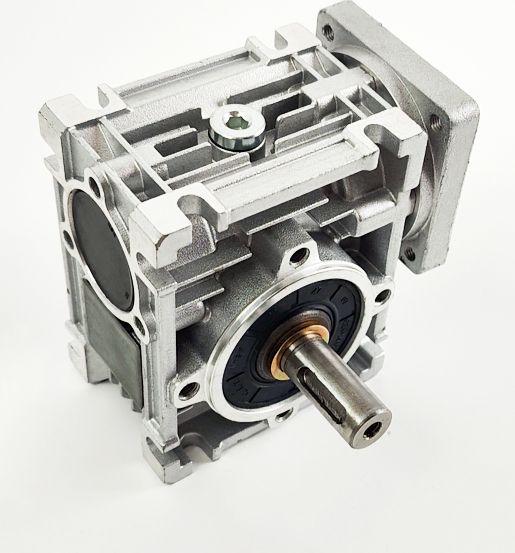

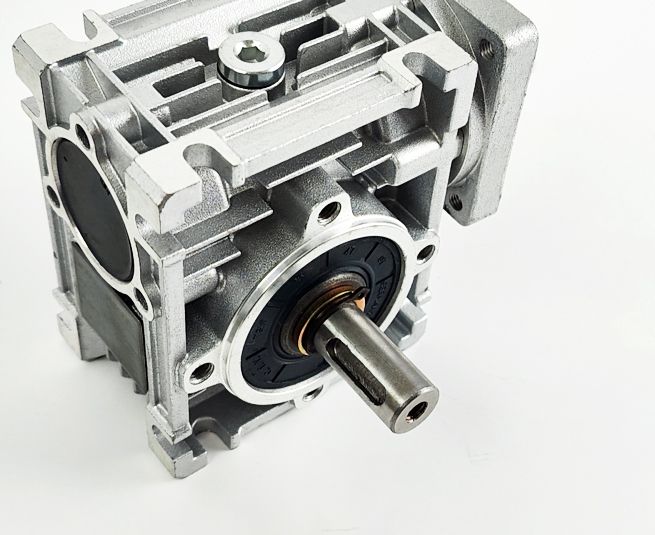

- Verify installation: Confirm that the shaft rotates freely and all components are securely seated.
Installation Precautions
- Follow the instructions carefully: This guide provides detailed installation steps and precautions. Adhering to these instructions helps prevent installation errors and component damage.
- Keep components clean: Ensure all part surfaces are free of oil, dust, and debris before installation to maintain proper fit and performance.
- Handle with care: Avoid using excessive force during installation to prevent damage to components.
- Ensure safety: Always observe proper safety practices during installation to avoid personal injury.
