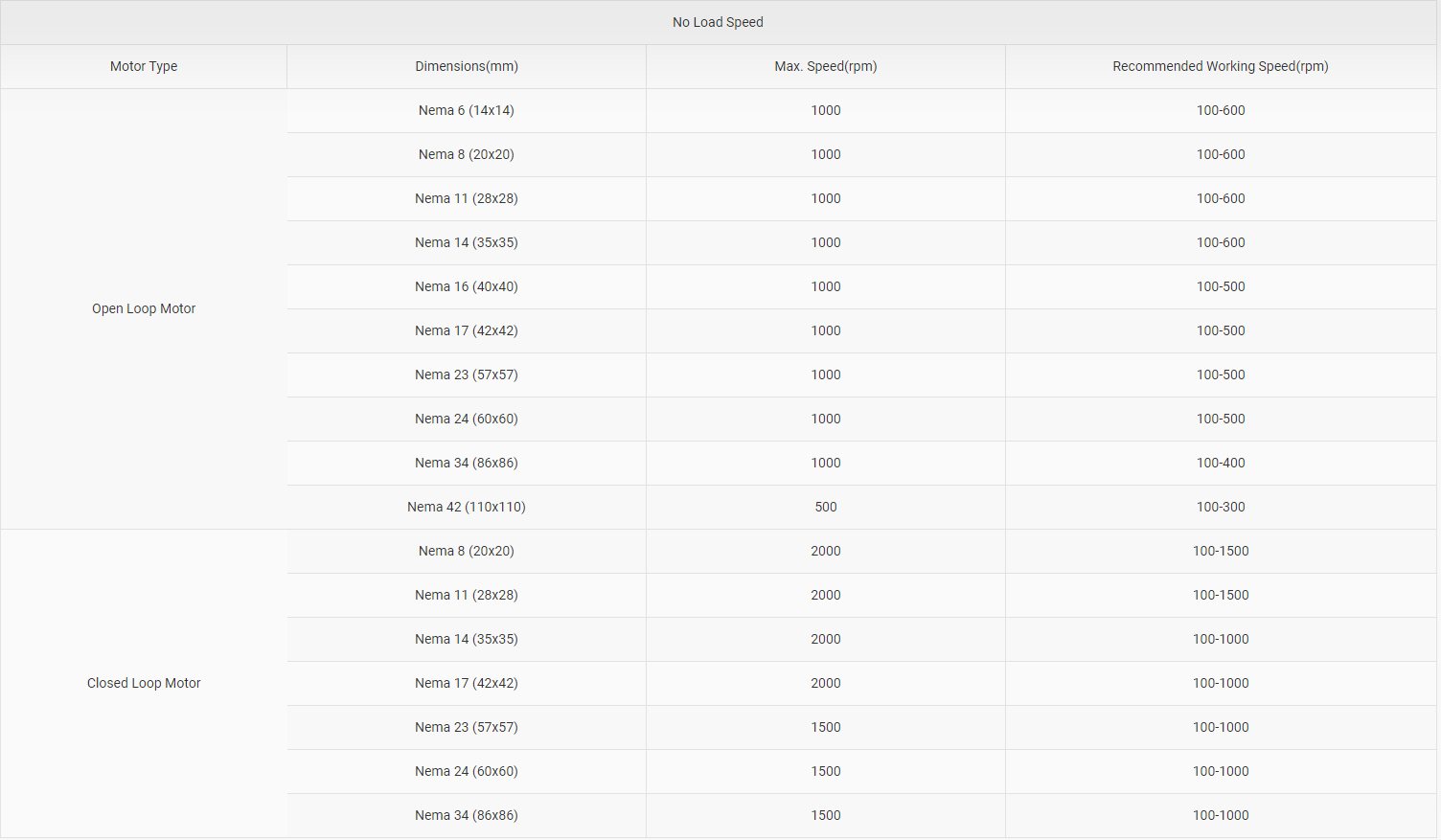

The table below summarizes the maximum and recommended operating speeds for various stepper motors. These values are provided as general guidelines. Actual operating speeds should be determined based on your specific application environment and load conditions.
Understanding Maximum vs. Recommended Speed
- Maximum Motor Speed refers to the highest rotational speed the motor can achieve without losing steps under ideal conditions. Operating at or near this limit is generally not advisable for sustained use.
- Recommended Motor Speed refers to the speed range at which the motor delivers optimal torque output and stable performance under typical load conditions.
Factors That Affect Actual Motor Speed
The achievable speed of a stepper motor depends on several variables, including:
- Driver voltage — Higher supply voltages enable faster current rise times, supporting higher speeds.
- Microstepping settings — Finer microstepping can improve smoothness at higher speeds but may reduce available torque.
- Load inertia — Greater load inertia requires more torque to accelerate, which can limit the practical maximum speed.
- Operating environment — Ambient temperature, ventilation, and mechanical conditions all influence motor performance at speed.
